Garrett PowerMax GT2260S Stage 1 Upgrade Turbo Charger For VW/AUDI 2.0L MK7/MK7.5 EA888

This genuine Garrett PowerMax upgrade stage one turbocharger is a brand new, direct fit replacement for 2014-2018 Volkswagen / Audi 2.0L TSI MK7 & MK7.5 EA888.

Garrett PowerMax™ turbocharger upgrades for the Volkswagen and Audi MK7 2.0L TSI engine platform is engineered to increase engine performance while maintaining OEM installation specifications. Stage 1 (485 HP*) upgrades maximize efficiency and air flow compared to the OEM turbocharger. High temperature, Mar-M alloy turbine wheel and twin scroll stainless steel turbine housings are rated for up to 1050° C. These turbochargers are fully assembled with a calibrated electronic actuator and ancillary components for direct OEM fitment.

WARNING: Maximum allowable turbocharger speed is 185krpm (Stage 1). The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure.

Click to download Garrett Flyer For this Product
Click to download Garrett Install Sheet For this Product

Product Features:

• Direct-Fit Stage 1 Upgrade
• 485HP | 362kW (flywheel) power capability (on-vehicle results)
• 47mm compressor inducer, 60mm compressor exducer
• 50mm turbine inducer, 45mm turbine exducer
• GT2260S turbocharger
• Audi A3, S3, TT, TTS
• VW Golf Base, AllTrack, GTI and R
• Complete assembly with calibrated electric actuator and ancillary components for OE fitment
• +17% flow compared to IS38 turbo (stock Golf R)
• GTX Gen II compressor wheel aero
• Modern gasoline turbine wheel aerodynamics constructed of Mar-M alloy rated for up to 1050C
• Stainless steel turbine housing rated for up to 1050C
• Fully machined speed sensor port
• Latest generation of journal bearing rotor group
• 360-degree thrust bearing –reinforced for application

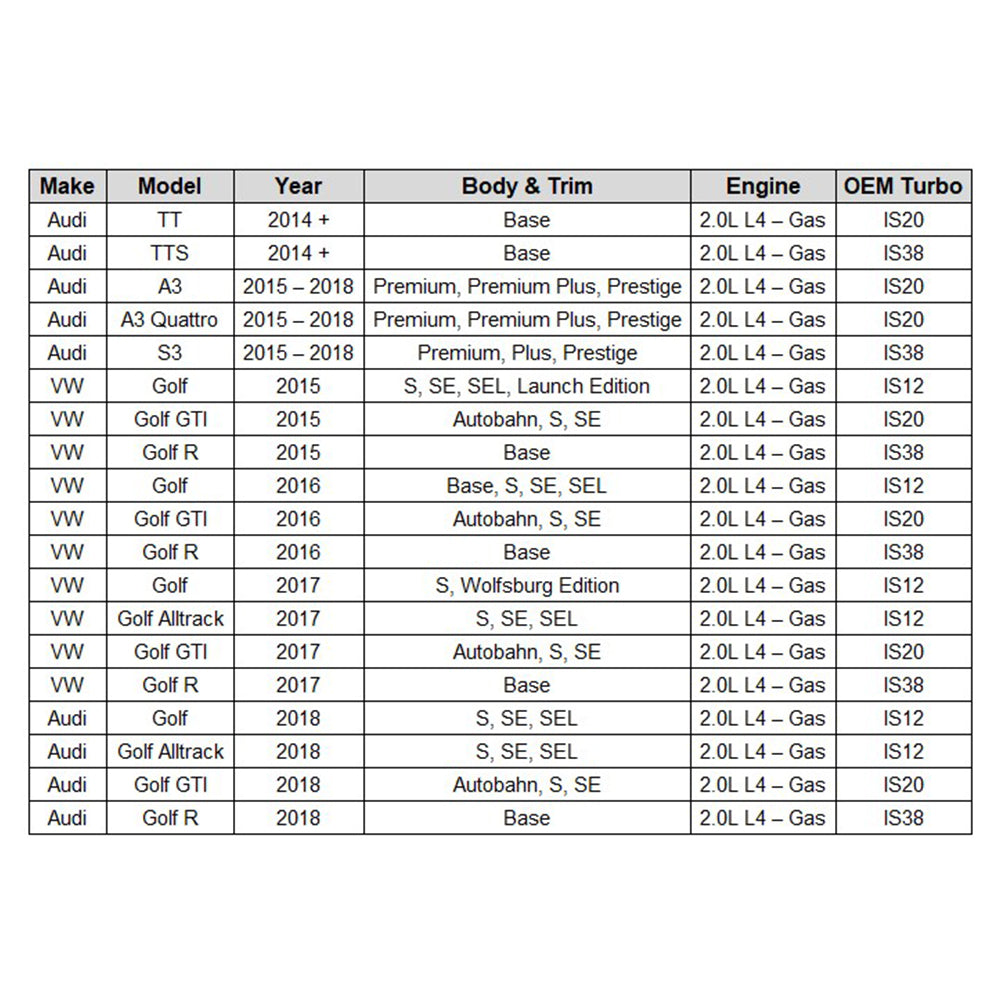

Vehicle Information

• Audi TT 2014 + Base 2.0L L4 - Gas IS20
• Audi TTS 2014 + Base 2.0L L4 - Gas IS38
• Audi A3 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
• Audi A3 Quattro 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
• Audi S3 2015 - 18 Premium Plus, Prestige 2.0L L4 - Gas IS38
• VW Golf 2015 S, SE, SEL, Launch Edition 2.0L L4 - Gas IS12
• VW Golf GTI 2015 Autobahn, S, SE 2.0L L4 - Gas IS20
• VW Golf R Mk 7 2015 Base 2.0L L4 - Gas IS38
• VW Golf R Mk 7.5 2017 Base 2.0L L4 - Gas IS38
• VW Golf 2016 Base, S, SE, SEL 2.0L L4 - Gas IS12
• VW Golf GTI 2016 Autobahn, S, SE 2.0L L4 - Gas IS20
• VW Golf R 2016 Base 2.0L L4 - Gas IS38
• VW Golf 2017 S, Wolfsburg Edition 2.0L L4 - Gas IS12
• VW Golf Alltrack 2017 S, SE, SEL 2.0L L4 - Gas IS12
• VW Golf GTI 2017 Autobahn, S, SE 2.0L L4 - Gas IS20
• VW Golf R 2017 Base 2.0L L4 - Gas IS38
• VW Golf 2018 S, SE, SEL 2.0L L4 - Gas IS12
• VW Golf Alltrack 2018 S, SE, SEL 2.0L L4 - Gas IS12
• VW Golf GTI 2018 Autobahn, S, SE 2.0L L4 - Gas IS20
• VW Golf R 2018 Base 2.0L L4 - Gas IS38

Turbocharger Information
Brand: Garrett
Model: GT2260S
Cooling Type: Oil
Power: 485HP/362KW
Comp Inducer: 47mm
Comp Exducer: 60mm
Turbine Inducer: 50mm
Turbine Exducer: 45mm

PowerMax Stage 1 Part No
G898199-5001W

OEM Turbocharger Applications:
IS12 06K124713L
IS20 06K145875M
IS38 06K145722H
